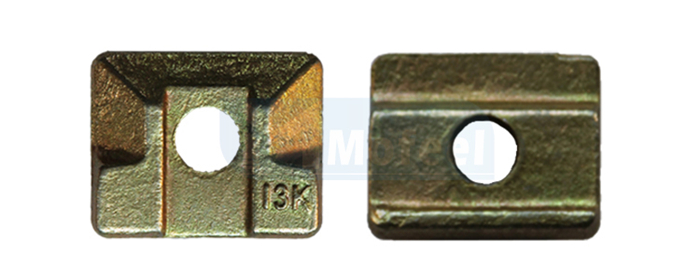

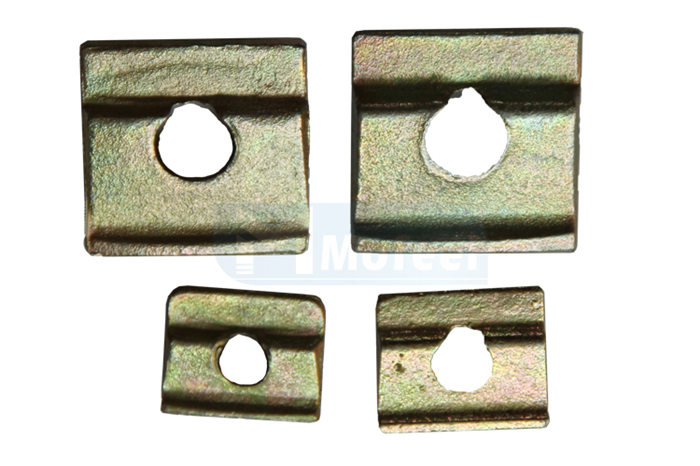

压导板
主要型号压导板尺寸及参数如下：COD.COD.ISOΦABCDEH1H2mmmmmmmmmmmmmmmmRP75T75-3/B1318323202132.5RP89T89/B1320425222153RP90T90/B1320425222153RP114T114/B1825437274175RP127T127-1/B1825437275228RP127T127-2/B1825437275228
主要型号压导板尺寸及参数如下：COD.COD.ISOΦABCDEH1H2mmmmmmmmmmmmmmmmRP75T75-3/B1318323202132.5RP89T89/B1320425222153RP90T90/B1320425222153RP114T114/B1825437274175RP127T127-1/B1825437275228RP127T127-2/B1825437275228
主要型号压导板尺寸及参数如下：
COD. | COD.ISO | Φ | A | B | C | D | E | H1 | H2 |
mm | mm | mm | mm | mm | mm | mm | mm | ||
RP75 | T75-3/B | 13 | 18 | 3 | 23 | 20 | 2 | 13 | 2.5 |
RP89 | T89/B | 13 | 20 | 4 | 25 | 22 | 2 | 15 | 3 |
RP90 | T90/B | 13 | 20 | 4 | 25 | 22 | 2 | 15 | 3 |
RP114 | T114/B | 18 | 25 | 4 | 37 | 27 | 4 | 17 | 5 |
RP127 | T127-1/B | 18 | 25 | 4 | 37 | 27 | 5 | 22 | 8 |
RP127 | T127-2/B | 18 | 25 | 4 | 37 | 27 | 5 | 22 | 8 |
